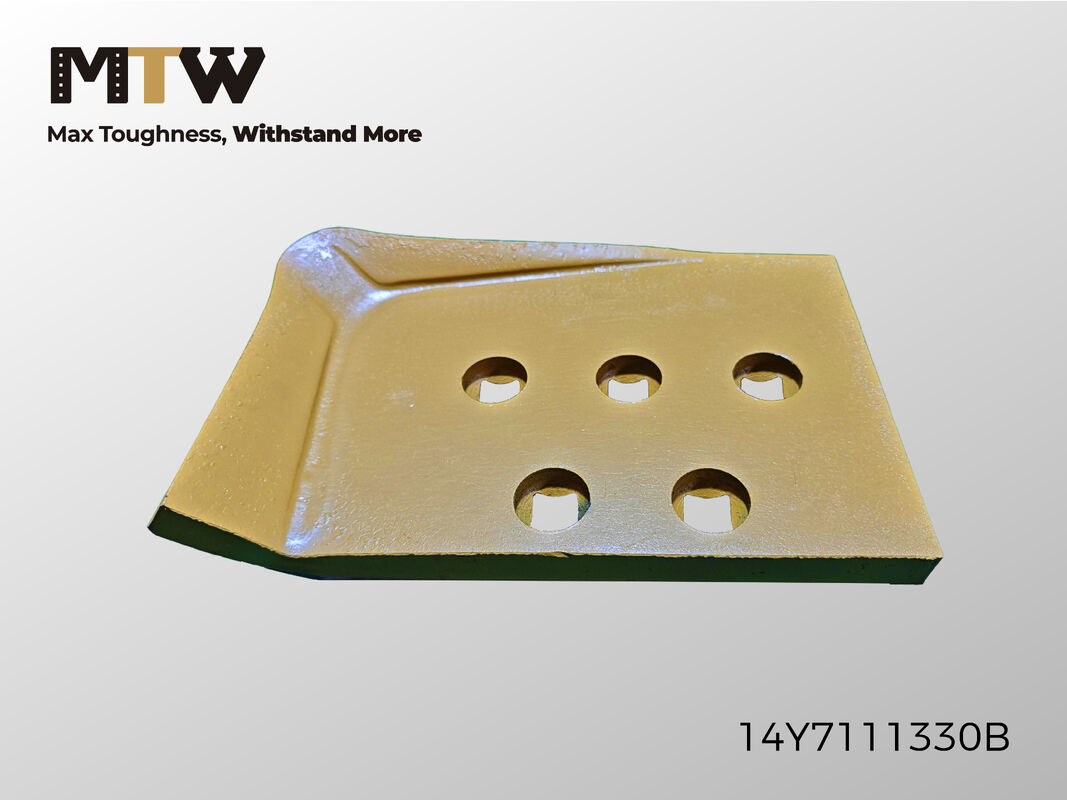

14Y7111330 Hot Cup End Bit LH HCEB 25×209×330 5 Holes Bulldozer End Bit
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | MTW |
| मॉडल संख्या: | 14Y7111330 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 5000KGS |
|---|---|
| प्रसव के समय: | 6-8 सप्ताह |
| भुगतान शर्तें: | टी/टी, एल/सी, डी/पी, डी/ए |
|
विस्तार जानकारी |
|||
| प्रोडक्ट का नाम: | 14Y7111330 हॉट कप एंड बिट एलएच एचसीईबी 25×209×330 5 होल्स बुलडोजर एंड बिट | सामग्री: | Q355B या 30MnB |
|---|---|---|---|
| रंग: | पीला या ग्राहक द्वारा डिज़ाइन किया गया | भाग संख्या: | 14Y7111330 |
उत्पाद विवरण
The 14Y7111330 Hot Cup End Bit LH is a heavy-duty bulldozer blade wear part designed to protect the left-hand corner of the blade during demanding earthmoving, mining, quarrying, and construction operations. Featuring a Hot Cup End Bit (HCEB) profile, it provides outstanding wear resistance, high impact strength, and extended service life under severe working conditions.
With dimensions of 25 × 209 × 330 mm, a 5-hole mounting configuration, and a weight of 12.8 kg, the 14Y7111330 End Bit ensures precise fitment, reliable blade protection, and reduced maintenance costs.
- Part Number: 14Y7111330
- Hot Cup End Bit LH
- Left-Hand Bulldozer End Bit
- HCEB (Hot Cup End Bit)
- 5-Hole Mounting Configuration
- Excellent Wear Resistance
- High Impact Strength
- Precision Fitment
- OEM Quality Replacement Part
- Easy Installation and Replacement
| Parameter | Specification |
|---|---|
| Part Number | 14Y7111330 |
| Blade Position | Hot Cup End Bit LH |
| Quantity Required | 1 |
| Blade Type | HCEB |
| Thickness | 25 mm |
| Width | 209 mm |
| Length | 330 mm |
| Total Holes | 5 |
| Weight | 12.8 KG |
The 14Y7111330 Hot Cup End Bit LH is suitable for:
- Bulldozers
- Mining Equipment
- Quarry Machinery
- Construction Equipment
- Earthmoving Machinery
- Road Construction
- Land Clearing Operations
- Heavy-Duty Dozing Applications
Designed to protect the blade corner from abrasion and impact while extending blade service life in demanding working environments.
- Protects blade corners from excessive wear
- Extends blade service life
- Improves dozing efficiency
- Reduces maintenance costs
- Minimizes equipment downtime
- Enhances productivity
- OEM-quality replacement wear parts
- Precision dimensional accuracy
- Excellent fit and compatibility
- Consistent product quality
- Competitive factory-direct pricing
- Worldwide shipping available
- OEM and custom manufacturing support
The 14Y7111330 is a left-hand Hot Cup End Bit designed to protect the corner of a bulldozer blade from wear and impact during heavy-duty dozing operations.
The dimensions are 25 mm thickness × 209 mm width × 330 mm length.
The end bit features a 5-hole mounting configuration.
The unit weight is 12.8 kg.
